HOMETube Straightening Machine
Straightening Machine
Category: Straightening Machine
Detailed Information

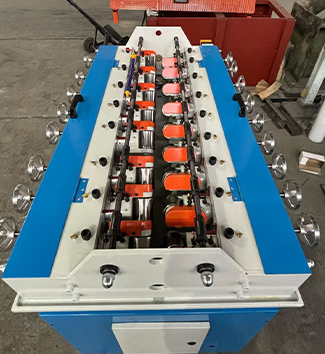

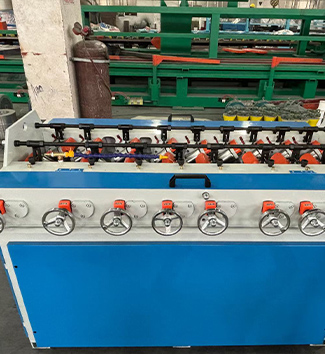

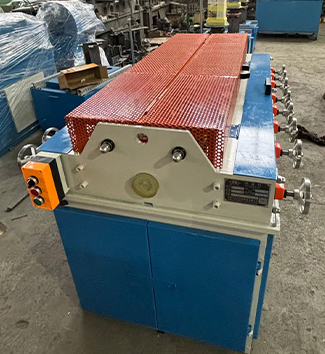

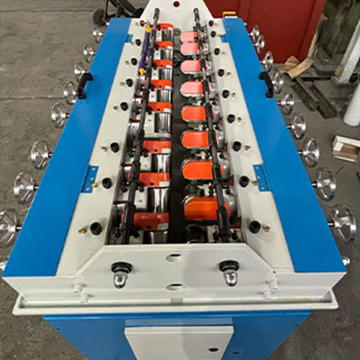

The tube straightening machine is specifically designed for straightening precision tubes with tight tolerance requirements. It ensures smooth surfaces and accurate alignment while maintaining tube integrity.
Key Features
-
High-precision straightening rollers
-
Low surface damage during processing
-
Adjustable for various tube diameters
-
Continuous and stable operation
Applications
-
Precision mechanical tubes
-
Hydraulic and pneumatic tubing
-
Stainless steel and alloy steel tubes
Advantages
-
Maintains tube roundness
-
Improves dimensional accuracy
-
Suitable for high-precision tube manufacturing
Technical parameter table structure
| Parameter | Specification |
|---|---|
| Model | TSM-80 / TSM-125 |
| Applicable Tube OD | Φ5–Φ125 mm |
| Tube Wall Thickness | 0.5–8 mm |
| Straightening Speed | 10–50 m/min |
| Roller Material | Alloy steel / Carbide treated |
| Yield Limit | ≤490 MPa |
| Straightness Tolerance | ≤0.8 mm/m |
| Motor Power | 2–20 kW |
| Control | Manual / Electric / |
| Hydraulic | |
| Machine Weight | by model |
