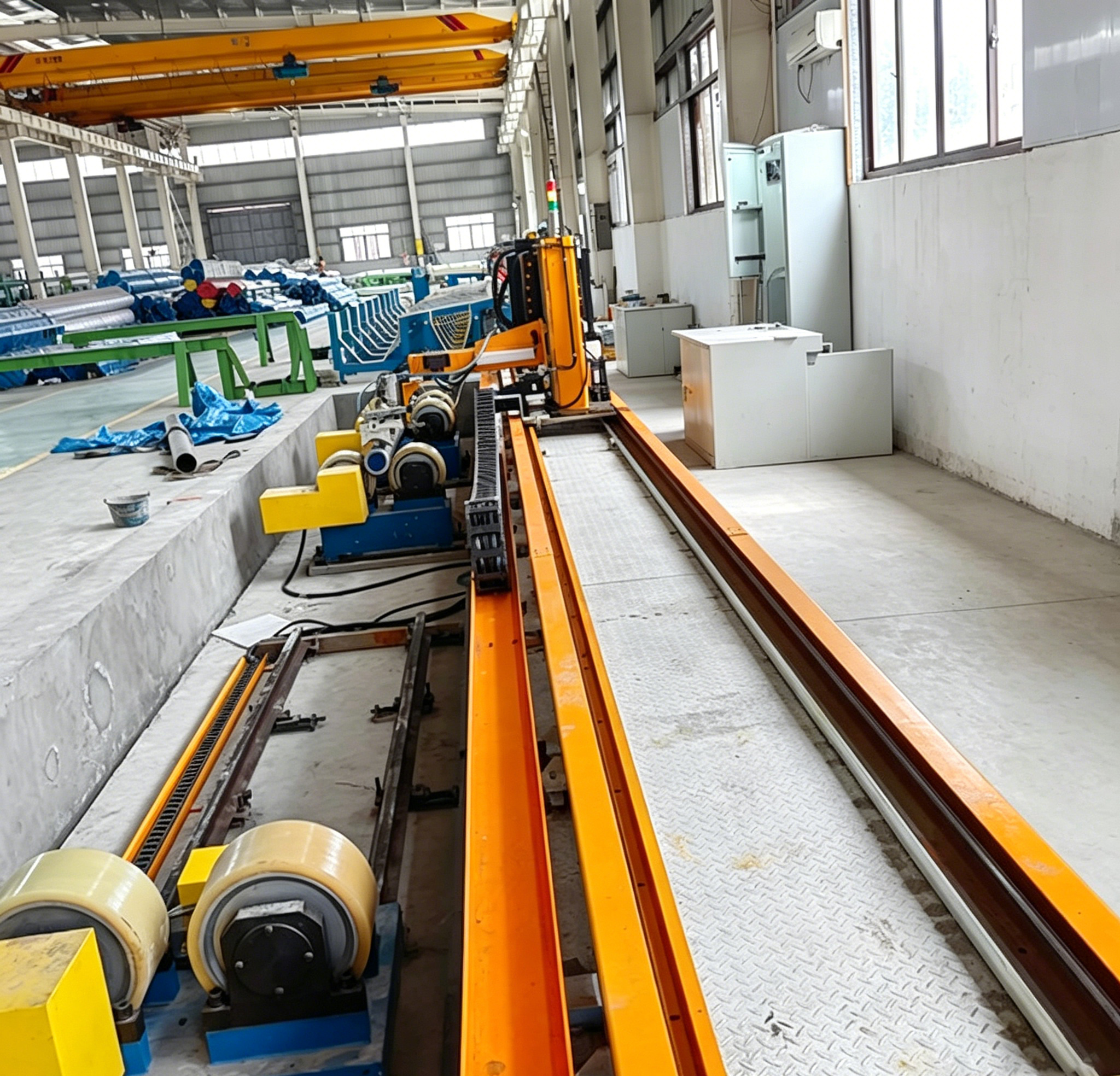

HOMEUltrasonic Pipe Inspection Machine
Pipe Ultrasonic Testing Machine
Product Overview
The Ultrasonic Pipe Inspection Machine is a professional pipe ultrasonic testing system designed for full-body inspection of welded and seamless steel pipes.
It uses high-frequency ultrasonic waves to detect:
- Internal cracks
- Wall thickness inconsistencies
- Welding defects
- Lamination and hidden flaws
Unlike traditional manual inspection methods, this system provides real-time digital inspection results, ensuring every pipe meets international quality standards.
Why Ultrasonic Pipe Inspection Matters
In modern pipe manufacturing, even micro-level defects can lead to:
- Pipeline leakage failures
- Pressure system breakdowns
- Safety risks in oil & gas transportation
- Product rejection in export markets
Our pipe inspection machine helps manufacturers reduce risk and improve production reliability by 90%+ defect detection accuracy.
Key Features
✔ High-Precision Ultrasonic Detection

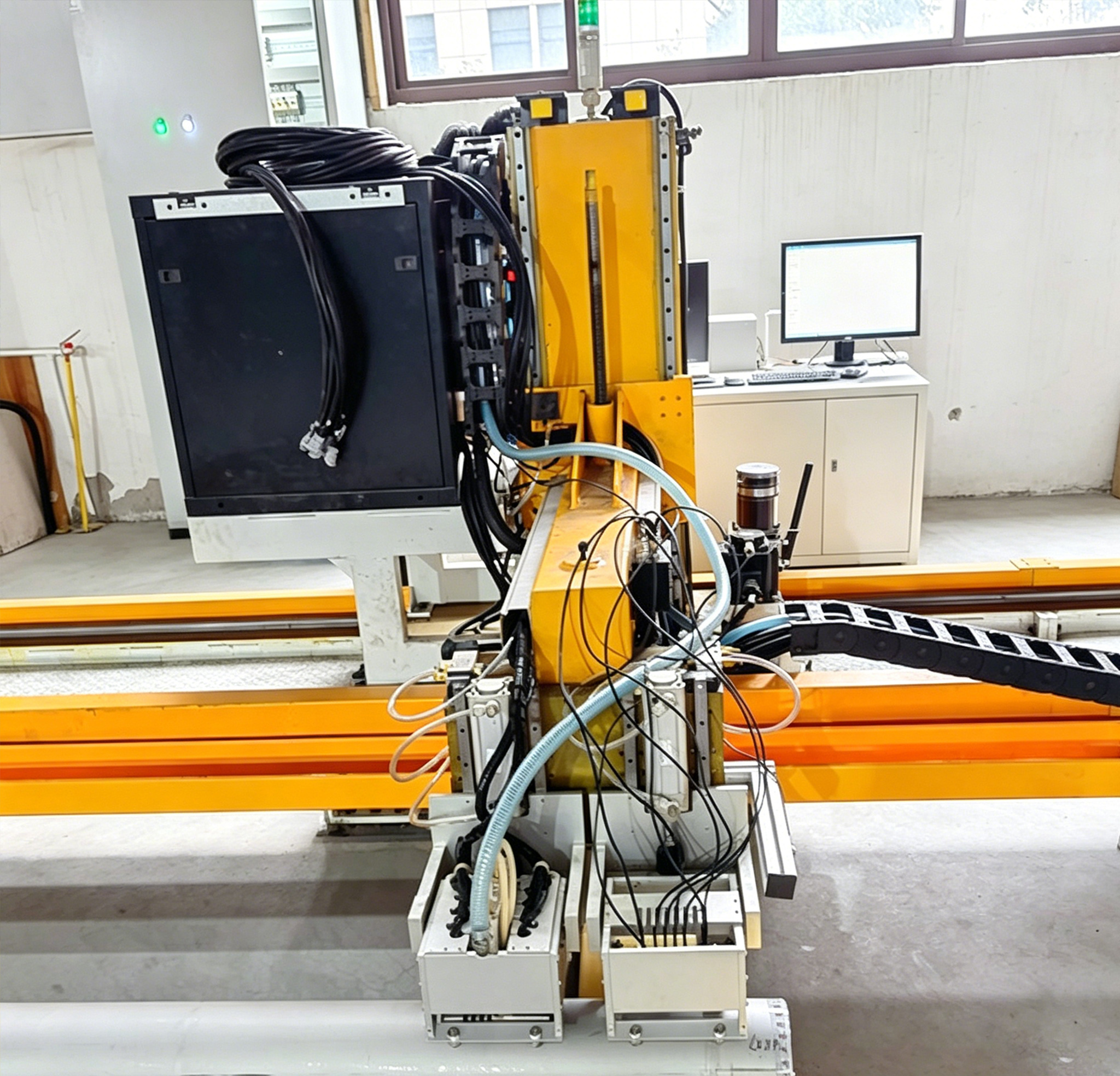

Advanced multi-channel ultrasonic sensors ensure accurate internal defect identification.
✔ Real-Time Digital Output
Instant inspection results displayed on industrial-grade HMI system.

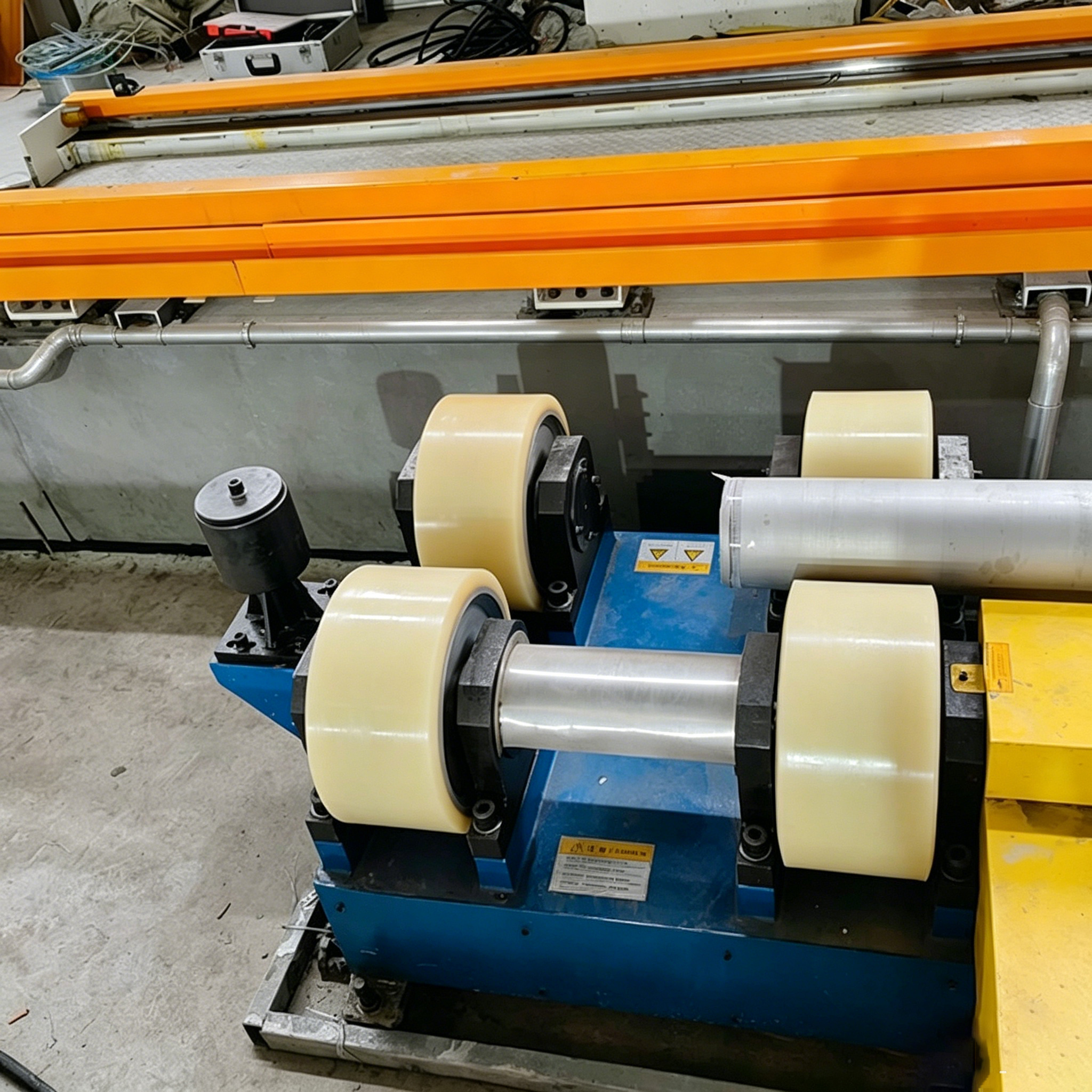

✔ Automatic Pipe Scanning System
Fully automated pipe feeding, rotation, and scanning for continuous production lines.
✔ Adjustable for Different Pipe Sizes
Supports various diameters and thicknesses for steel pipe production.
✔ Stable Industrial Performance
Designed for 24/7 continuous operation in heavy-duty manufacturing environments.
Technical Specifications
|
Item |
Specification |
|
Pipe Diameter Range |
20mm – 1200mm (customizable) |
|
Testing Method |
Ultrasonic Non-Destructive Testing (UT) |
|
Detection Speed |
Up to 2–10 m/min (depends on model) |
|
Inspection Accuracy |
≥ 0.1 mm defect detection |
|
Data Output |
Digital report + real-time monitoring |
|
Operation Mode |
Fully automatic / semi-automatic |
Applications
The Ultrasonic Pipe Inspection Machine is widely used in:
- Oil & Gas pipeline manufacturing
- Steel pipe production plants
- Boiler tube inspection
- Shipbuilding industry
- Petrochemical engineering
- Power plant pipeline systems
Advantages Compared to Traditional Testing
|
Traditional Method |
Ultrasonic Pipe Inspection Machine |
|
Manual inspection |
Fully automated system |
|
Low accuracy |
High precision detection |
|
Slow process |
Continuous online testing |
|
High labor cost |
Reduced manpower requirement |
|
Inconsistent results |
Standardized digital output |
Why Choose Our Pipe Ultrasonic Testing System
- Industrial-grade NDT technology
- Export-ready CE/ISO compliant design
- Stable performance for mass production lines
- Easy integration into existing pipe production systems
- Low maintenance cost with long service life
Customization Options
We provide fully customized solutions based on customer requirements:
- Pipe diameter range customization
- Detection sensitivity adjustment
- Inline or offline inspection systems
- Integration with production line automation
- Data reporting system customization
Quality Assurance
All equipment is manufactured under strict quality control standards:
- ISO 9001 certified production process
- 100% factory testing before shipment
- International export packaging standards
- Remote technical support available
Get a Quote
Looking for a reliable Ultrasonic Pipe Inspection Machine for your production line?
We provide:
- Fast quotation within 24 hours
- Technical solution design
- OEM / customized systems
- Global shipping support
