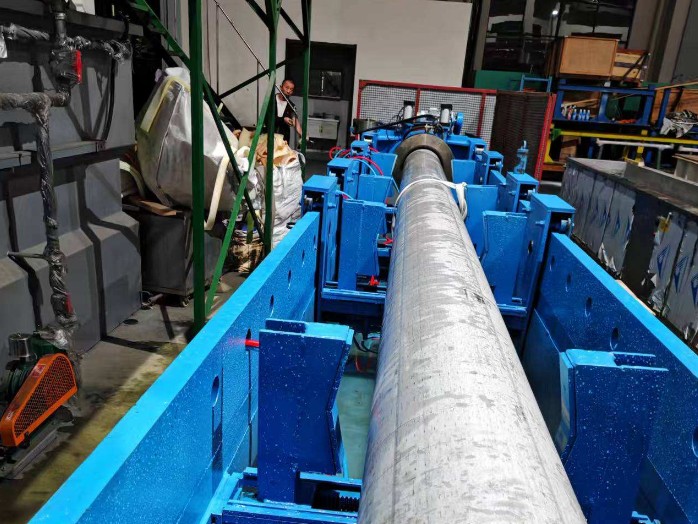

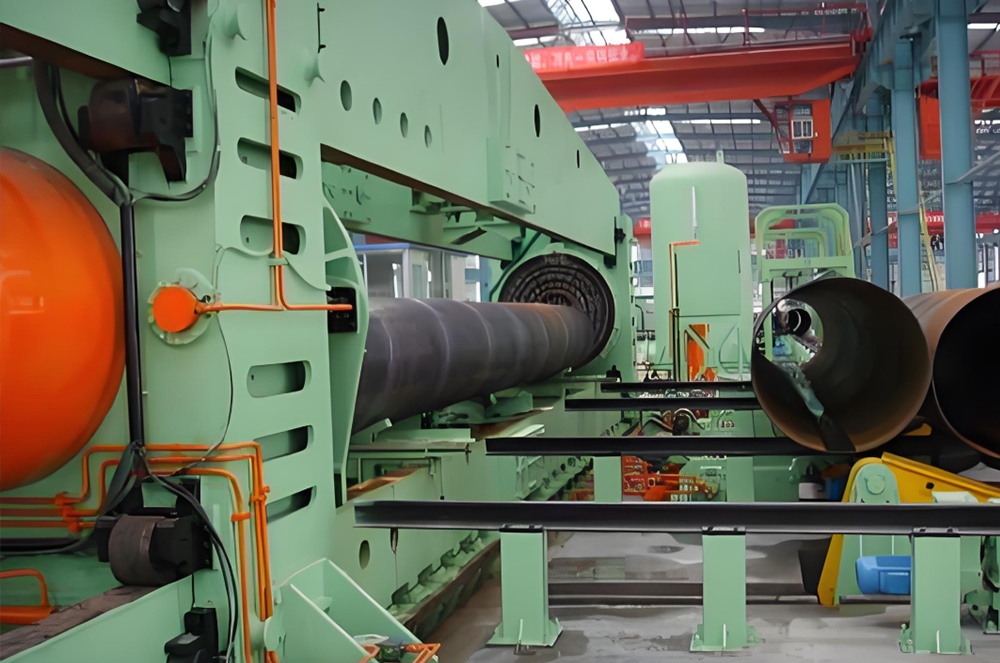

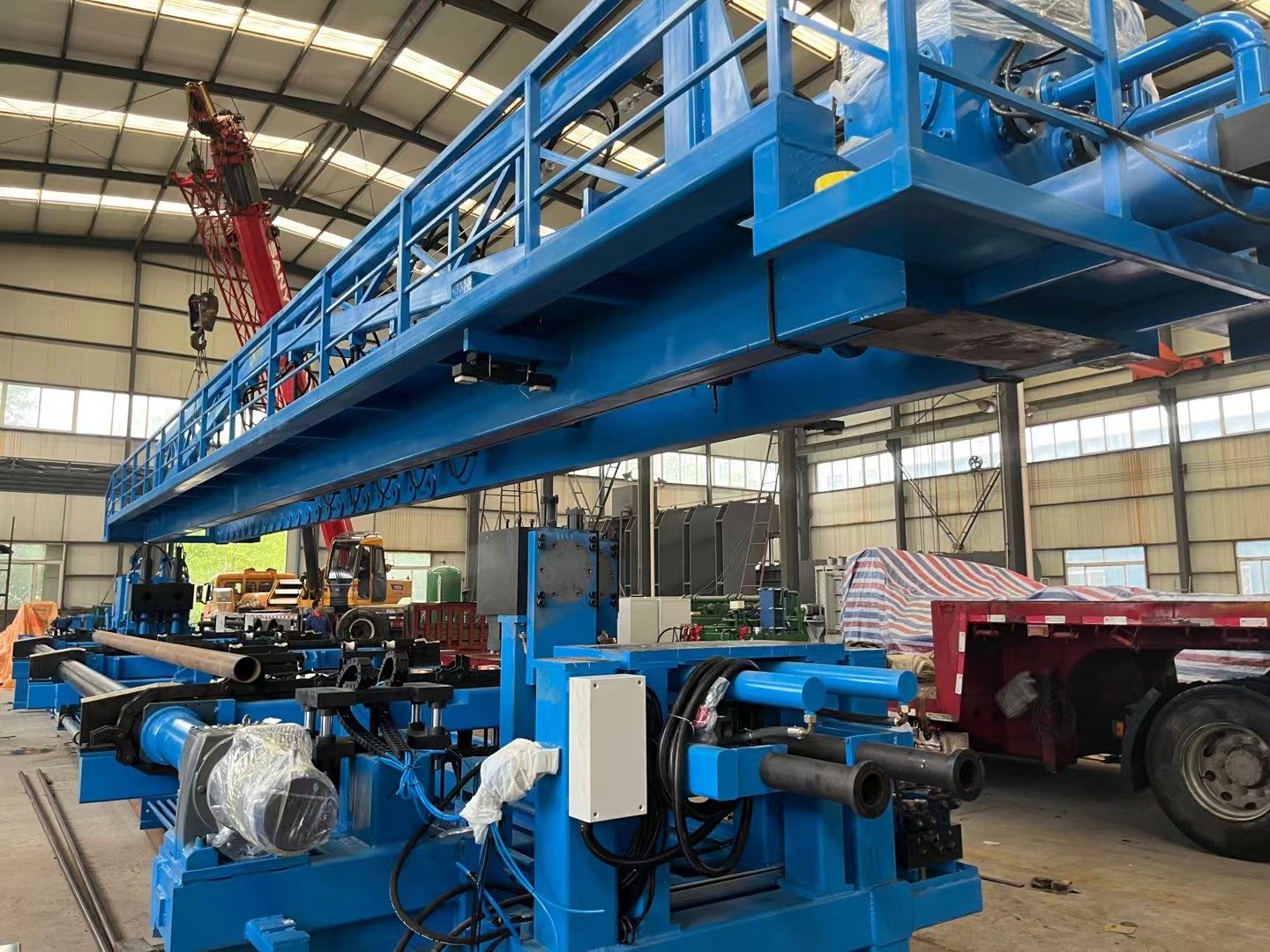

Large Diameter Pipe Hydro Testing Machine

At Wuxi Marley Machinery, we design large diameter pipe hydro testing machines for steel pipe manufacturers who need reliable hydrostatic testing for large-diameter pipes. Our focus is not simply to increase the testing pressure. The machine must also keep the pipe securely positioned, maintain stable end sealing, and complete each testing cycle efficiently.

For large-diameter LSAW and SSAW pipes, these requirements become more important because pipe weight, diameter, wall thickness, and length directly affect the sealing force, hydraulic system, and handling process.

Designed for Large-Diameter Steel Pipes

We configure the machine according to the actual pipe range rather than applying one fixed design to every customer.

The system can be configured for:

• Large-diameter LSAW pipes
• Large-diameter SSAW pipes
• ERW steel pipes
• Seamless steel pipes
• Long and heavy steel pipes
• Customized pipe sizes and testing requirements

For large-diameter applications, we pay particular attention to the relationship between pipe size, sealing force, hydraulic pressure, and machine structure.

Our Solution for Large-Diameter Pipe Sealing

End sealing is one of the main engineering challenges in large-diameter hydrostatic testing.

As pipe diameter increases, the internal pressure generates a greater axial force on the testing heads. If the sealing system is not properly matched to the pipe and test pressure, leakage can interrupt the test and reduce production efficiency.

We therefore select the sealing configuration according to the customer's pipe OD, wall thickness, pipe-end condition, and required test pressure.

Depending on the application, we can provide different sealing solutions, including:

• Pipe end-face sealing
• Inner filled rubber sealing
• Outer radial sealing
• Customized large-gap sealing solutions

The hydraulic sealing system is designed to maintain stable sealing force during the pressure test.

Stable Testing for LSAW and SSAW Pipes

Large-diameter LSAW and SSAW pipes are commonly used in pipeline applications where reliable pressure testing is essential.

For these pipes, we consider more than the weld seam itself. The complete testing system needs to accommodate the pipe's diameter, length, weight, and production cycle.

During machine design, we consider:

Pipe diameter — determines the testing head and sealing configuration.

Pipe length — affects machine layout, pipe support, and handling.

Wall thickness — affects the required test pressure and hydraulic load.

Production capacity — determines testing station quantity and automation requirements.

Pipe weight — affects support and loading/unloading arrangements.

Large Diameter Pipe Hydro Testing Process

Our typical testing sequence is:

Pipe Loading → Positioning → End Sealing → Water Filling → Air Exhaust → Pressure Build-Up → Pressure Holding → Pressure Release → Unloading

After the pipe is positioned, both ends are sealed hydraulically. The pipe is then filled with water and the trapped air is removed.

The hydraulic system gradually increases the internal water pressure to the specified testing pressure. Once the required pressure is reached, the system maintains it for the specified holding period.

After testing, the pressure is released in a controlled manner and the water is drained or recycled before the pipe is unloaded.

Technical Specifications

The final configuration is determined from the customer's actual pipe dimensions, testing pressure, production speed, and plant layout.

Designed Around Production Efficiency

For a large-diameter pipe mill, hydro testing can become a production bottleneck if loading, water filling, pressure holding, and unloading take too long.

We therefore configure the number of testing stations and pipe handling system according to the required production output.

Where necessary, automatic feeding and unloading can be integrated into the system to reduce manual handling and improve testing consistency.

Our Approach

We do not treat a large-diameter pipe hydro tester as simply a larger version of a standard machine.

The sealing system, hydraulic structure, pipe support, testing heads, water system, and handling arrangement all need to be considered together.

At Wuxi Marley Machinery, we design the equipment around the customer's actual pipe diameter, length, wall thickness, test pressure, and production requirements.

Our objective is to provide stable hydrostatic testing for large-diameter steel pipes without compromising sealing reliability or production efficiency.
