Pipe chamfering machine and pipe hydro testing machine integrated machine

1. Overview of the All-in-One Pipe Chamfering and Hydrostatic Testing Machine:

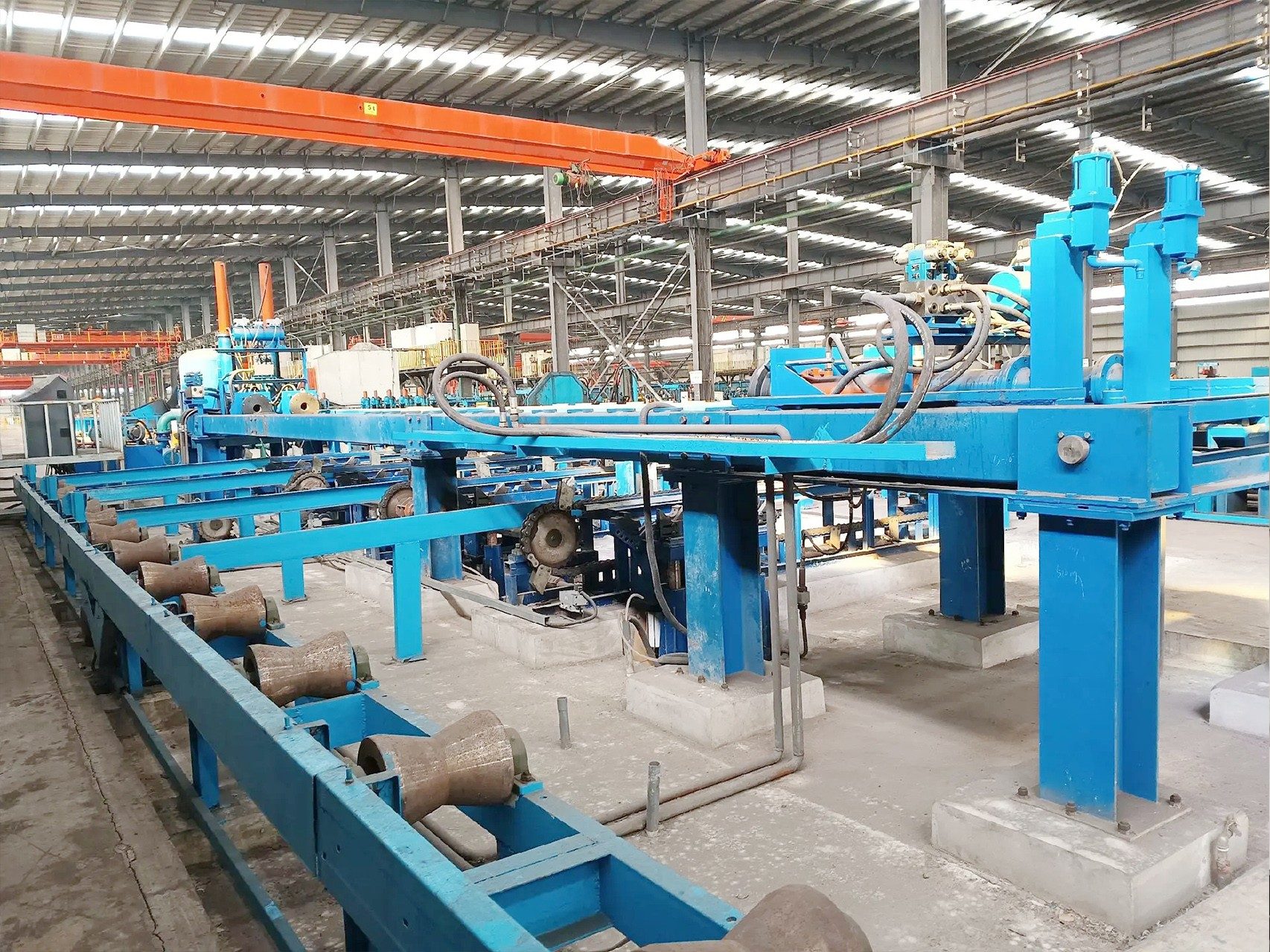

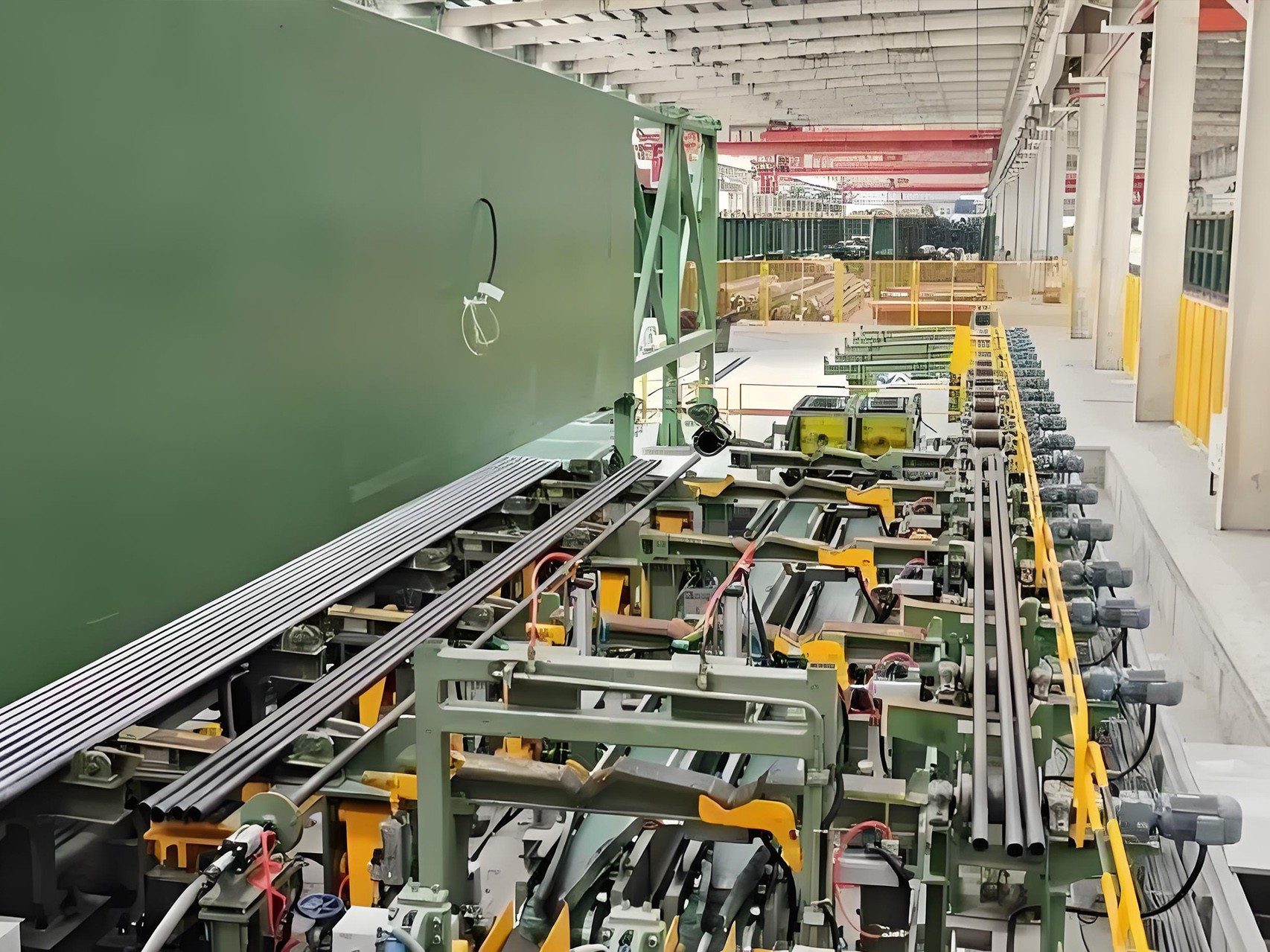

The All-in-One Pipe Chamfering and Hydrostatic Testing Machine performs both flat-end chamfering and hydrostatic testing of steel pipes online. This streamlined process allows for direct discharge of fluid pipes, making it convenient, efficient, space-saving, and labor-saving.

2. Components of the All-in-One Pipe Chamfering and Hydrostatic Testing Machine:

2.1 The pipe chamfering machine, designed to meet production line speeds of 5-30 pipes/minute.
2.2 Connecting material beds, the flat-end chamfering machine feed and discharge beds, and the hydro press.

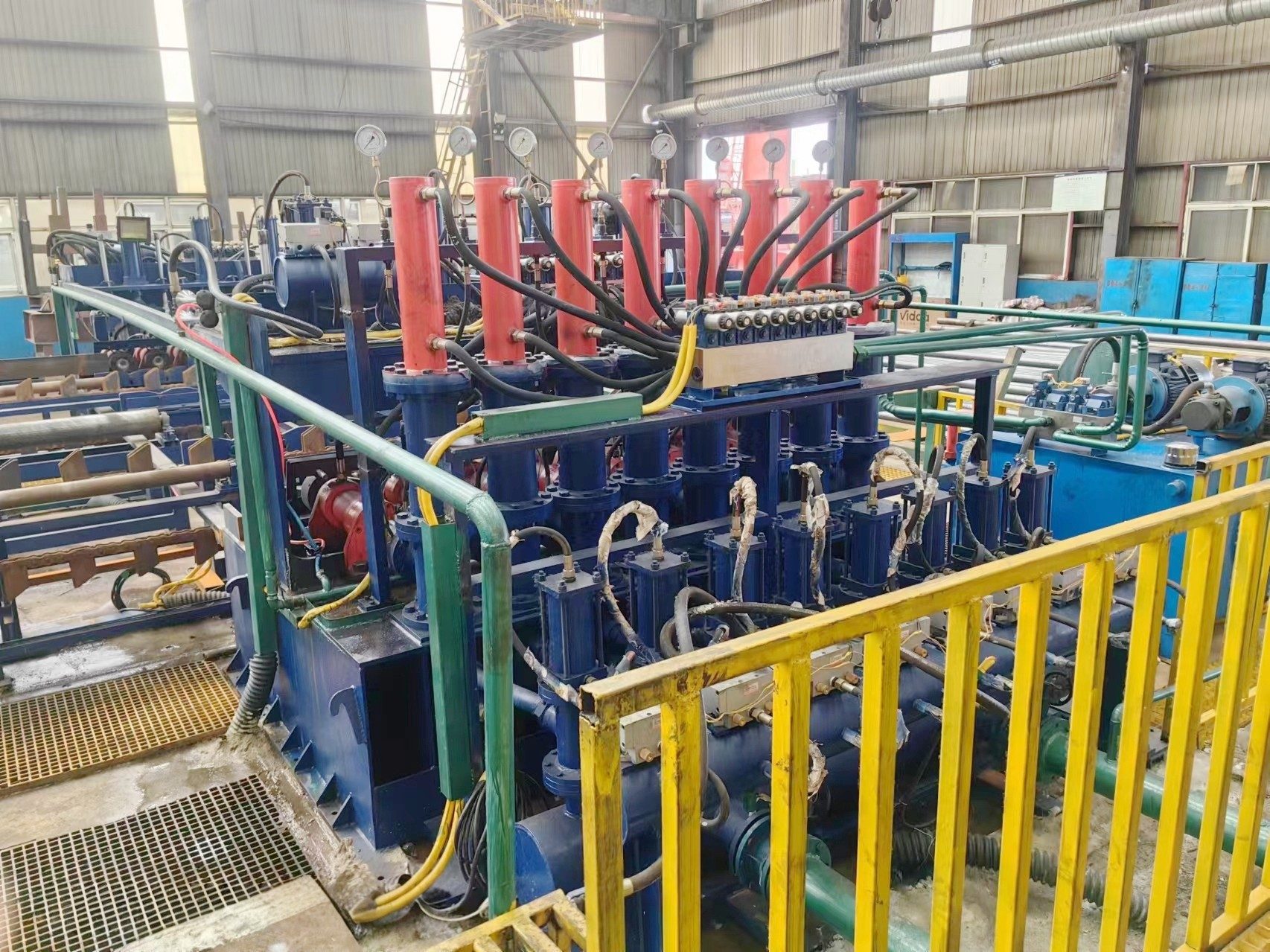

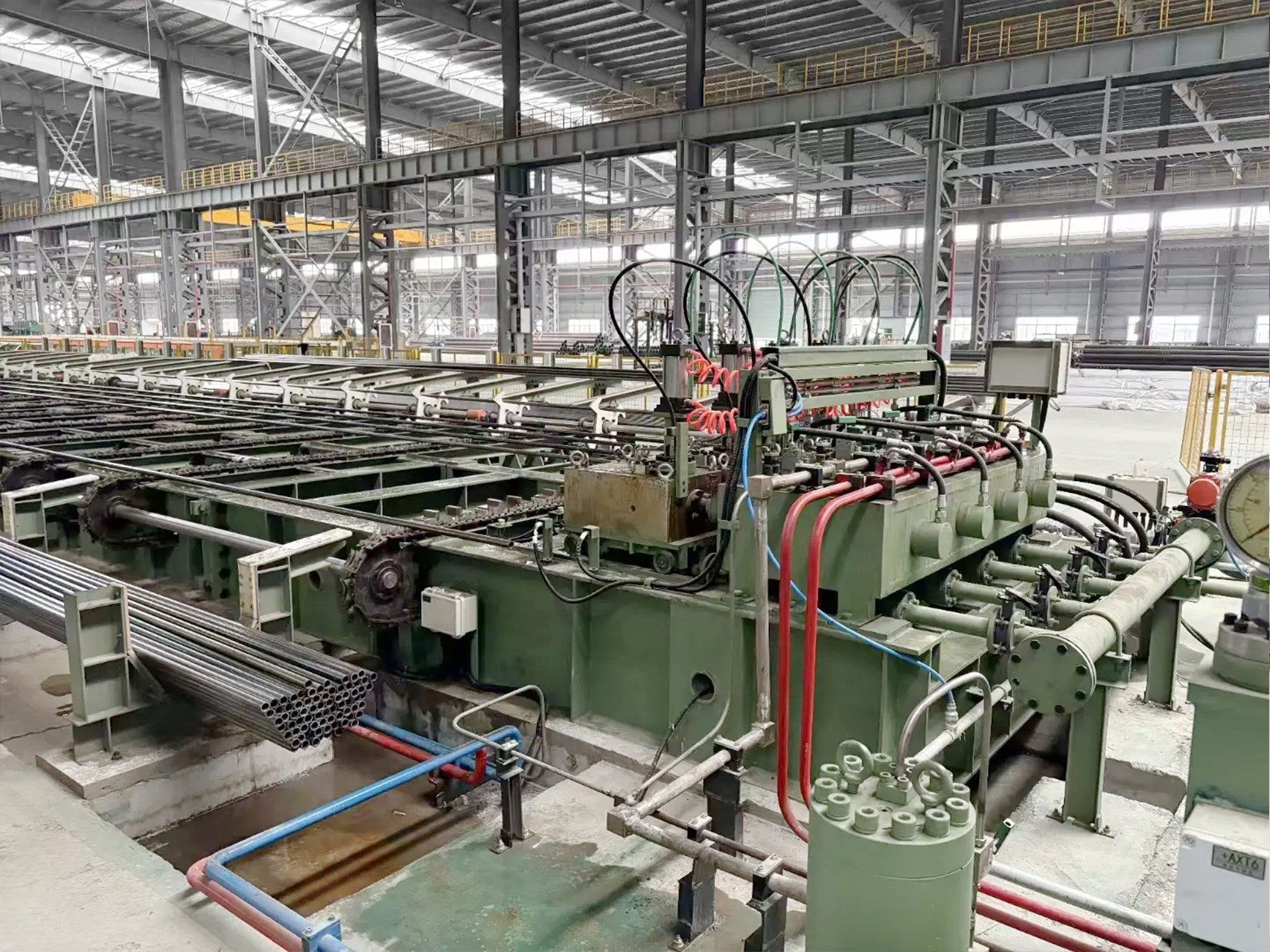

2.3 The pipe hydrostatic testing machine, featuring a multi-station structure and rapid water injection, pressurization, pressure maintenance, and pressure relief systems, meets production line speeds of 2-10 pipes/minute.
2.4 The pipe hydrostatic testing machine's steel pipe removal system.
2.5 The finished product and scrap pipe collection racks.

2.6 Electronic Control System: The pipe chamfering machine and the pipe hydro testing machine are designed with independent control systems, interconnected by inductive switches.

3. Operating Sequence of the Integrated Pipe Chamfering and Hydro Testing Machine:

Roller pipe - Tube turned onto material bed 1 - Flat chamfering (left-right offset flat chamfering) - Remove from material bed - Hydro press removes pipe horizontally - Blows water for cleaning - Hydro test - Remove.

4. Power Configuration:

4.1 Pipe Chamfering Machine Power (varies based on custom requirements):
Name Feed Servo Spindle AC Pushing Motor Traverse Motor Other Total Power
Power 3 kW x 2 15 kW x 2 1.1 kW x 2 15 kW 2.9 kW 55 kW
4.2 Pipe Hydrostatic Testing Machine Power (varies based on custom requirements):
Name Water Pump Pipe Jacking Booster Traverse Other Total Power
Power 30 kW 15 kW 22 kW 4 kW 9 kW 80 kW
