How to Perform hydro testing machine for pipe on Stainless Steel Pipes Efficiently

In industries such as oil & gas, chemical processing, and pipeline engineering, ensuring the integrity of stainless steel pipes under high pressure is essential. Performing 30MPa hydrostatic testing correctly not only guarantees product safety but also helps manufacturers meet strict international standards.

In this guide, we will walk through how to perform efficient hydrostatic testing using a modern pipe hydro testing machine, along with key parameters, best practices, and real factory insights.

Why hydro testing machine for pipe matters

High-pressure environments demand reliable pipe performance. A properly executed 30MPa hydrostatic testing process ensures:

• No leakage under extreme pressure
• Structural strength and durability
• Compliance with API and ASTM standards
• Reduced risk of failure during operation

For stainless steel pipes used in critical systems, hydrostatic testing is not optional—it is mandatory.

Equipment Required for 30MPa Testing

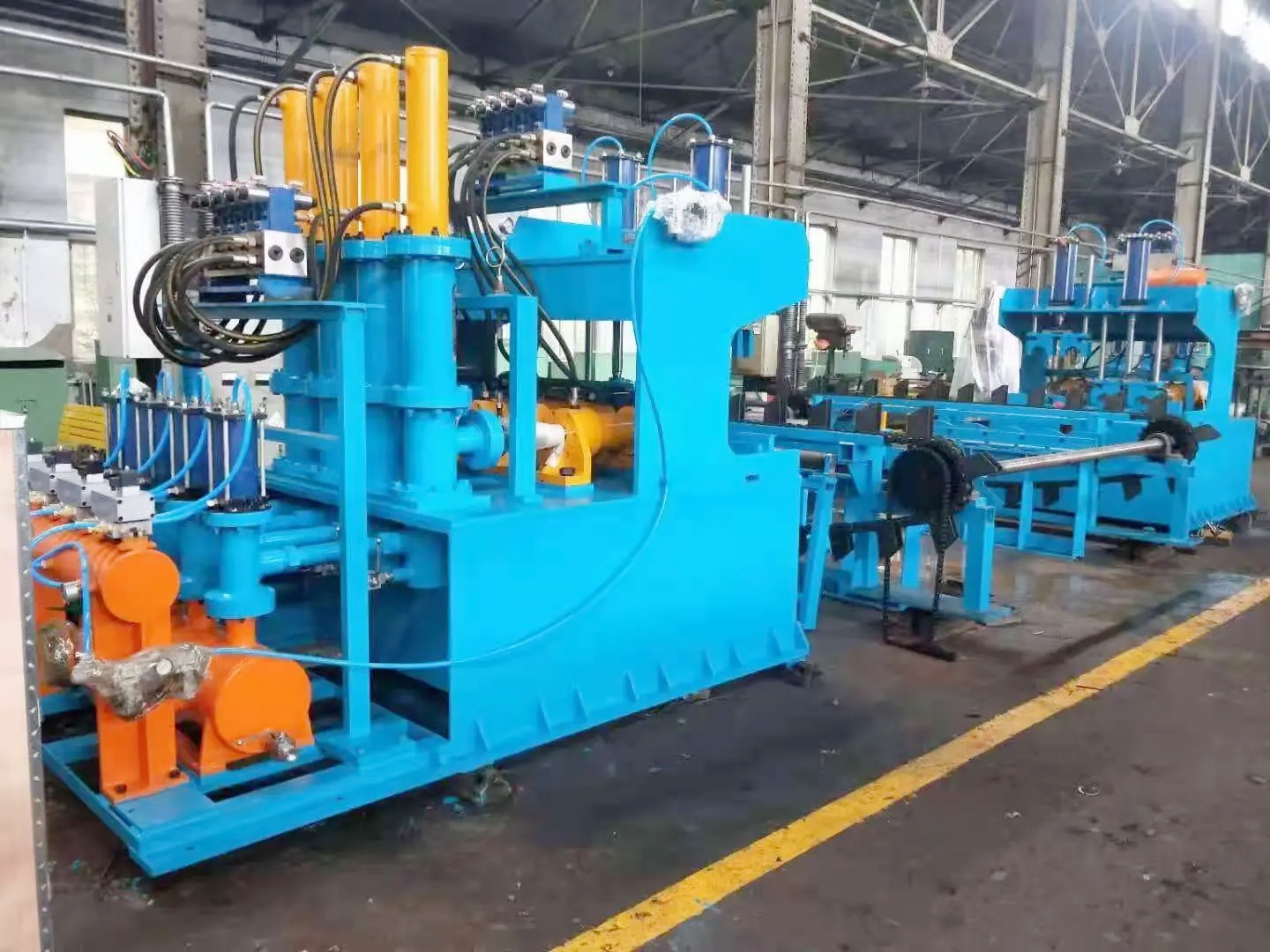

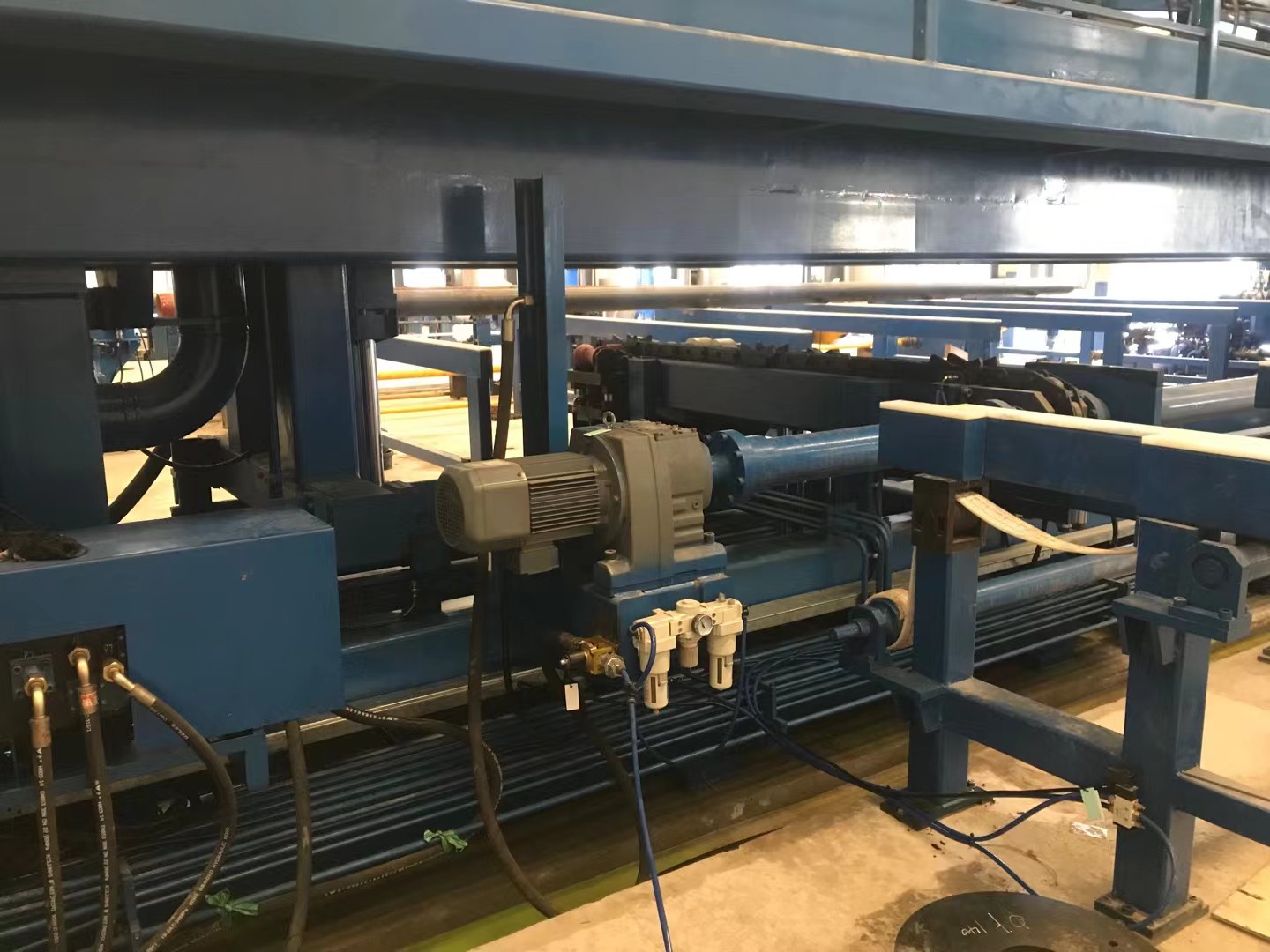

To achieve accurate and efficient results, a professional pipe hydro testing machine is required. A modern system typically includes:

• Automatic clamping mechanism
• High-pressure pump system (up to 30MPa)
• PLC control system
• Leak detection system
• Data monitoring and recording

Step-by-Step: pipe hydro testing machine process

Below is a standard procedure used in most steel pipe factories:

1. Pipe Preparation

Ensure the stainless steel pipe is clean and free from debris. Proper sealing at both ends is critical.

2. Water Filling

Fill the pipe completely with water to eliminate air pockets, which could affect test accuracy.

3. Pressure Increase

Gradually increase pressure using the pipe hydro testing machine until it reaches 30MPa.

4. Pressure Holding

Maintain the pressure for a specified duration (typically 30–60 seconds) to detect any leakage.

5. Pressure Release and Drainage

Release pressure safely and drain the water after the test is completed.

Typical Testing Parameters

Parameter	Value
Test Pressure	30MPa
Pipe Material	Stainless Steel
Holding Time	30–60 seconds
Testing Medium	Water
Control System	PLC Automatic

These parameters can be adjusted based on pipe specifications and project requirements.

Best Practices for Efficient Hydrostatic Testing

To improve efficiency and accuracy, follow these expert recommendations:

✔ Use Automatic Equipment

A fully automatic pipe hydro testing machine reduces human error and increases productivity.

✔ Control Pressure Gradually

Avoid sudden pressure spikes to prevent damage or inaccurate results.

✔ Ensure Proper Sealing

Leakage at the sealing ends can lead to false test failures.

✔ Record Test Data

Use systems that allow data tracking for quality control and compliance audits.

Real Factory Testing Example

In a recent test, a stainless steel pipe was subjected to 30MPa pressure using an automatic pipe hydro testing machine.

Results:

• Stable pressure throughout the test
• No leakage observed
• Smooth automated operation

This demonstrates how modern equipment ensures both reliability and efficiency in real production environments.

Applications of pipe hydro testing machine

Hydrostatic testing at this level is widely used in:

• Oil and gas pipeline manufacturing
• Stainless steel pipe production
• High-pressure industrial systems
• API standard pipe inspection

How to Choose the Right Pipe Hydro Testing Machine

When selecting a pipe hydro testing machine, consider:

• Pipe diameter and length range
• Maximum required pressure (e.g., 30MPa)
• Production capacity
• Automation level
• Compliance requirements

Choosing the right machine ensures long-term efficiency and consistent product quality.

Efficient 30MPa hydrostatic testing is essential for ensuring the safety and reliability of stainless steel pipes. By using a high-quality pipe hydro testing machine and following proper testing procedures, manufacturers can achieve accurate results, improve productivity, and meet global standards.

If you are planning to upgrade your testing process or need a customized solution, feel free to contact us with your pipe specifications and pressure requirements.
